X-ray and gamma radiation sources of the IRIK-D type

(TU 95 1773-97)

Fields of ​​application: X-ray fluorescence analysis, nuclear medicine, technological control.

IRIK-D sources are hermetically sealed capsules made of titanium, steel 12Х18Н10Т or copper (brass), inside of which there are substrates made of silver, rhodium or copper with radionuclides electrodeposited on them.

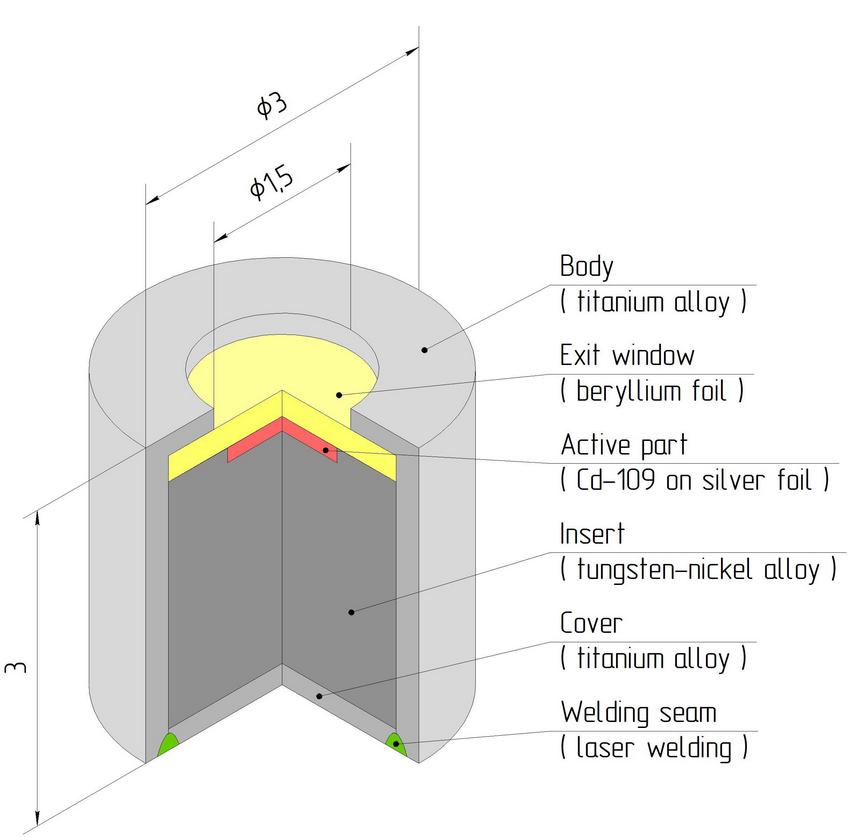

IRIK-D (Cd-109)

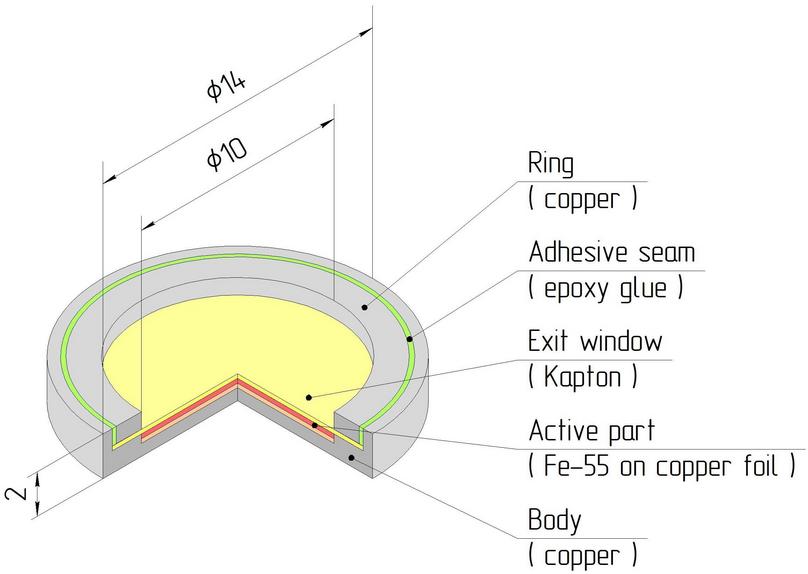

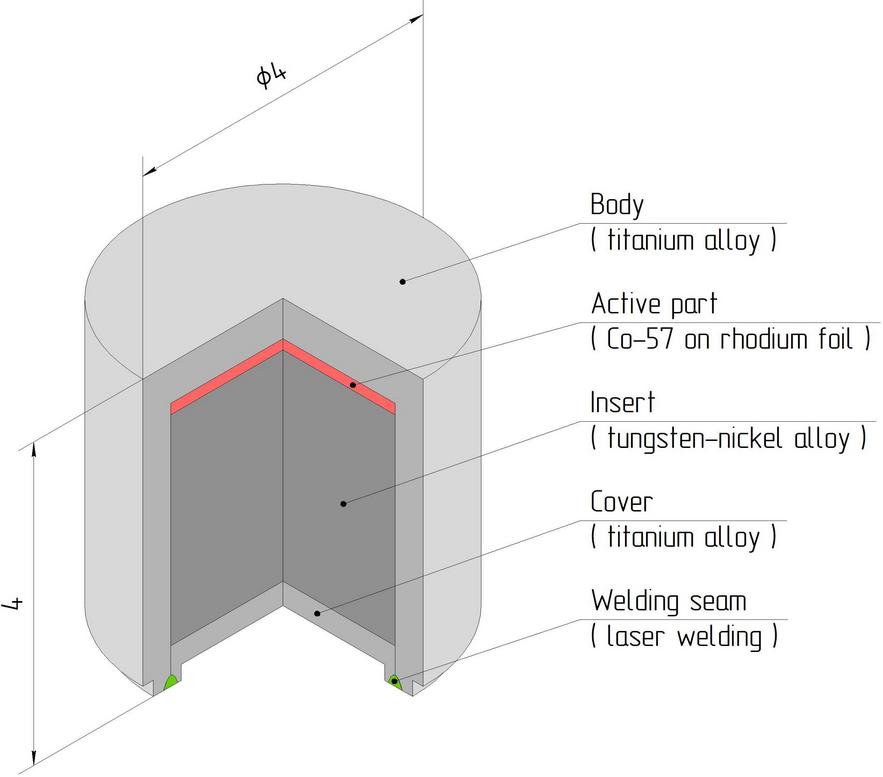

IRIK-D type sources. Radionuclides ⁵⁵Fe, ⁵⁷Co or ¹⁰⁹Cd are electroplated on a metal foil. The foil with radionuclide is hermetically sealed in the capsule. The hermetization of the capsule is provided by laser welding or by epoxy resin.
Activity of radioisotopes:
⁵⁵Fe 5 — up to 150 mCi
⁵⁷Co 5 — up to 150 mCi
¹⁰⁹Cd 5 — up to 300 mCi
Tolerance limits of activity range from 0% to plus 20%.
ISO classification: C 54334 for ⁵⁷Co and ¹⁰⁹Cd, C 22221 for ⁵⁵Fe.
Dimensions of capsule and active diameter can be modified as specified by the customer.
