Linear source type PGL.1
(TU 95 2702-2007)
Field of application: positron emission tomography (PET) systems.

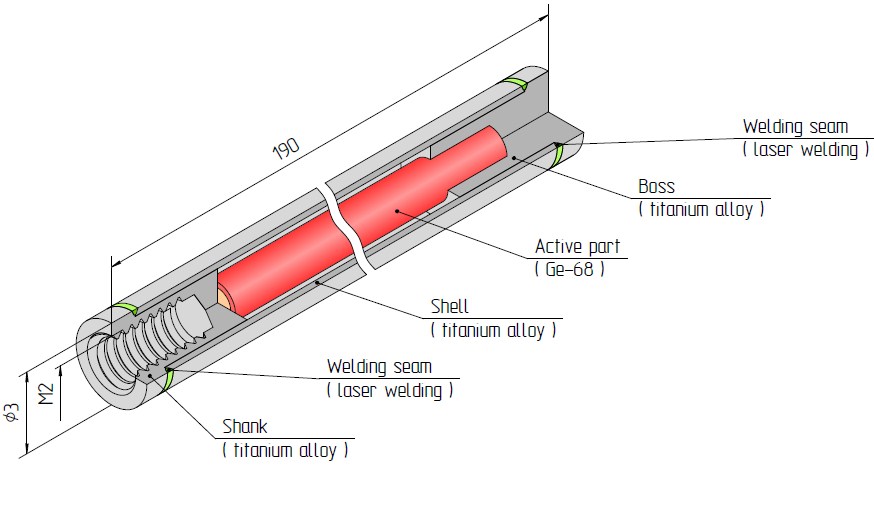

The linear gamma radiation source PGL.1 is a hermetically sealed extended capsule made of titanium alloy VT1 or stainless steel 12X18H10T with a diameter of 3 mm and a length of up to 200 mm, inside which there is an active part in the form of a metal wire with germanium-68 radionuclide deposited on it. Plugs are inserted into the tube on both sides, one of which has a blind threaded hole M2.
Diameter of the active part. . . . . . . . . . . . . . 1 mm
Length of the active part. . . . . . . . . . . . . . . . up to 190 mm
68Ge activity. . . . . . . . . . . . . . . . . . . . . up to 20 mCi (0.74 GBq)
Deviation of activity from nominal. . . . ± 10 %
Standard deviation of measured
distribution along the source axis. . . . . . …. ≤ 1.5%
PGL.1 (Ge-68)
Sources of PGL.1 in terms of strength classes according to GOST-25926 and ISO-2919 correspond (have a designation) with 22212. The tightness of the source corresponds to GOST R 51119-2002 (ISO 9978-92).
Sources of PGL.1 are supplied in a specially designed packaging kit UKT1A-1TS (C).
Volume source (phantom) type PGL.2
(TU 95 2702-2007)
Field of application: positron emission tomography (PET) systems.
The volumetric gamma radiation source PGL.2 is a sealed cylindrical capsule made of polyamide with an outer diameter of 213 mm and a height of 309-379 mm, inside which there is an active part in the form of a cylinder made of epoxy compound with germanium-68 radionuclide evenly distributed in it.
Diameter of the active part . . . . . . . . . . . . . . 200 mm
Height of the active part . . . . . . . . . . . . . . . 200-270 mm
68Ge Activity . . . . . . . . . . . . . . . . . . . . . up to 10 mCi (0.37 GBq)
Uneven activity . . . . . . . . . ± 5 %
The deviation of activity from the nominal value ….……. ± 10 %
The dimensions of the capsule and the diameter of the active part of the source can be changed at the request of the customer.
PGL.2 (Ge-68)
Sources of PGL.2 in terms of strength classes according to GOST-25926 and ISO-2919 correspond (have a designation) with 22212. The tightness of the source corresponds to GOST R 51119-2002 (ISO 9978-92).
Sources of PGL.2 are supplied in a specially designed packaging kit UKT1A-0-2C.
Sources PGL.2 according to strength classes according to GOST-25926 and ISO-2919 correspond (have the designation) C 22212. The tightness of the source corresponds to GOST R 51119-2002 (ISO 9978-92).
PGL.2 sources are supplied in a packaging kit UKT1A-0-2 TS (C). specially designed for them.
